How to connect spaces

Have more questions? Submit a request

Content


    This article refers to the Space Editor V2:
    Click here to learn how you can use the new Space Editor.

    You can use links to connect different 3D spaces with each other. In this article you will learn more about creating links between spaces.



    Add a connecting element

    Select a 3D object that will take the user into the new 3D space. For example, you can placedoor from the 3D object catalog in your space or you can use a virtual portal. There is no limit to your creativity!

    User Experience Tip

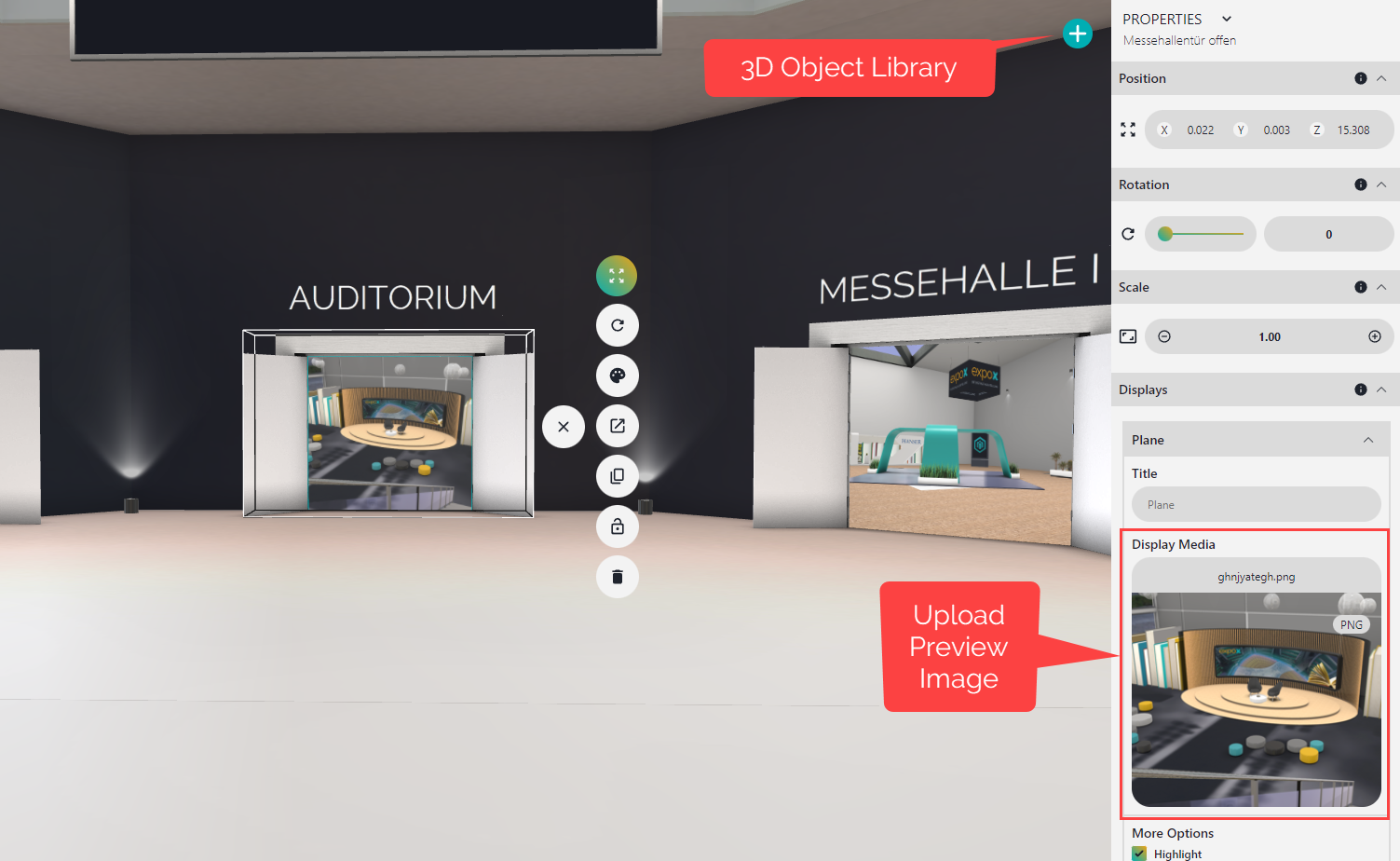

    Some doors can even be uploaded a preview image (display) - this makes it more obvious that another 3D space can be found there.

    To make the link even more prominent, you can add a highlight effect and a tooltip to the virtual door. (Example tooltip: "Click here to enter exhibition hall 2").



    Create a link

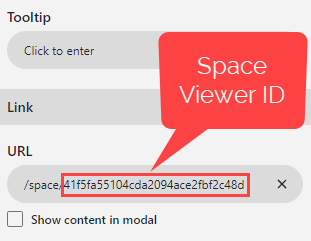

    Now you only have to put the 3D space of your choice in the Link field. Use the following parameters:

    /space/41f5fa55104cda2094ace2fbf2c48d?autostart=1

    Insert the Space Viewer ID of the room in the middle.

    The Space Viewer ID is part of the web link to the 3D Space Viewer. You can get this via your dashboard. For more information, read the article "How to share and embed a space".


    User Experience Tip

    Add the URL parameter ?autostart=1 after the Viewer ID. The new space will then load directly and it will no longer be necessary to click on the 3D button again.
